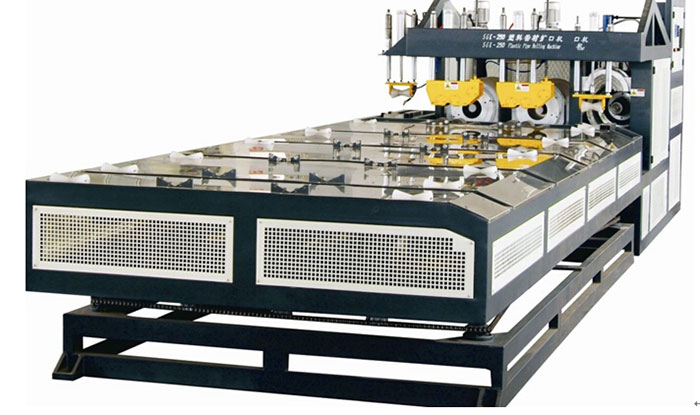

PVC pipe belling machine
GET QUOTATION NOW


Summary:

1,Usage condition:380V/3phase/50HZ(adjustable according to client’s request)

2,Usage material: PVC pipe,PP pipe

3,Outside diameter of belling pipe: Φ50mm—Φ800mm

4,Work length: 4m-6m

Product Description

Model Pipe Diameter Heating Method Belling Method Heating power Dimension
SGK110 50-110mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK160 50-160mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK200 50-200mm Electric heating Mould physical expansion 10.5kw 7855x1350x1900mm
SGK250 110-250mm Electric heating Mould physical expansion 10.5kw 7830x1620x1700mm
SGK315 160-315mm Electric heating Mould physical expansion 14kw 8050x1750x1900mm
SGK450 200-450mm Electric heating Mould physical expansion 18kw 8290x2090x2080mm
SGK500 315-500mm Electric heating Mould physical expansion 18kw 8500x3050x2100mm
SGK630 400-630mm Electric heating Mould physical expansion 22.5kw 8615x3125x2500mm

Our factory offer full automatic/semi-automatic plastic pipe belling machine/expanding machine with range from 50-800mm, if want more details, please do hot hesitate to contact with us!
