Project Description

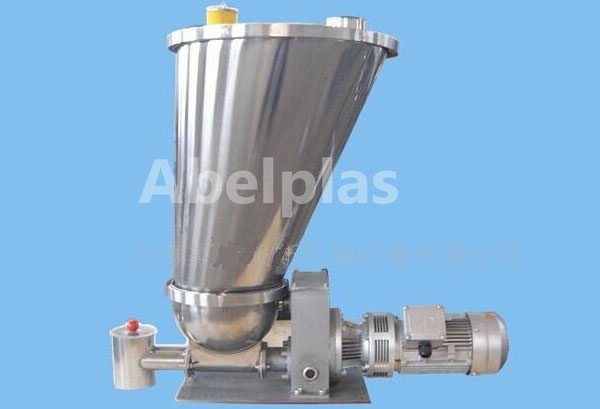

Volumetric Single Screw Feeder
Application:
The V-S feeder is designed to provide volumetric feeding for a wide variety of materials including pellets,granules and free flowing powders
Design:
Single screw feeder with interchangeable feed screws is mounted on painted steel base plate. All material contact parts are stainless steel. The feeder is easily disassembled for cleaning or change-over. Special design of feeding bowl is unique.
Product Description
Controller :
Motor speed regulator will be frequency inventor. Frequency invertor can be supplied by customer.
Actual feeder screws are determined based on the material characteristics. The following is estimated feeding rates for free flowing materials. For feeding rates at either end of the range, feeding testing is recommended.
| Feed Model | Feed rates | Material | Asymmetrical Hopper | Symmetrical Hopper |
| V-S60 | 5-1,200 L/h | Pellet, free flowing powder, etc. | 40L/80L/120L/150L | 10L/40L/80L/120L/180L |
Configuration
| Type | Asymmetrical Hopper | Symmetrical Hopper | |||||
| V1(L) | H 1 | ¢D1 | X | V2(L) | H 2 | ¢D 2 | |
|
S60 |
40 | 475 | 430 | 75 | 10 | 207 | 280 |
| 80 | 690 | 530 | 125 | 80 | 550 | 530 | |
| 120 | 795 | 630 | 175 | 120 | 653 | 630 | |
| 150 | 962 | 630 | 175 | 180 | 866 | 630 | |
