Project Description
PVC window and door making machine
Description of the UPVC window machine PVC doors and windows machine :

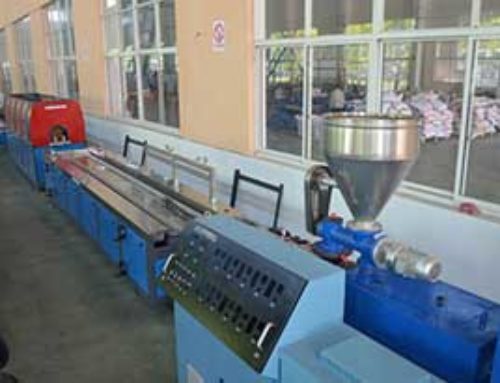

PVC profile extrusion line is my company to absorb the international latest technology, adopt efficient conical twin screw extruder, vacuum calibrating process, used to produce PVC UPVC doors and Windows profiles, window sill board, wall hangs Taiwan, decorative plate profile extrusion. PVC window machine UPVC window extrusion machine mainly PVC, UPVC as raw materials, production of various kinds of plastic doors and Windows profiles (plastic profiles, decorative profiles, etc
Product Description
Main composition of the UPVC window machine PVC doors and windows machine :
| Item | Quantity |
| twin screw extruder | one set |
| Die mould | one set |
| Vacuum forming unit | one set |
| Haul-off unit | one set |
| Cutting unit | one set |
| Stacker | one set |
| Electric control system | one set |
| Spare parts list | one set |
Other models of the UPVC window machine PVC doors and windows machine :
| model | YF240 | YF400 | YF600 | YF1000 |
| main machinery | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| output | 120kg/h | 250kg/h | 350kg/h | 500kg/h |
| max hauling size | 240X100mm | 400X100mm | 600X80mm | 1000X30mm |
| hauling motor | 1.1kwX2 | 1.1kwX2 | 1.1kwX2 | 1.5kwX2 |
| cutting size | 240X100 | 400X100 | 600X80 | 1000X30 |
| speed adjusting | inverter | inverter | inverter | inverter |

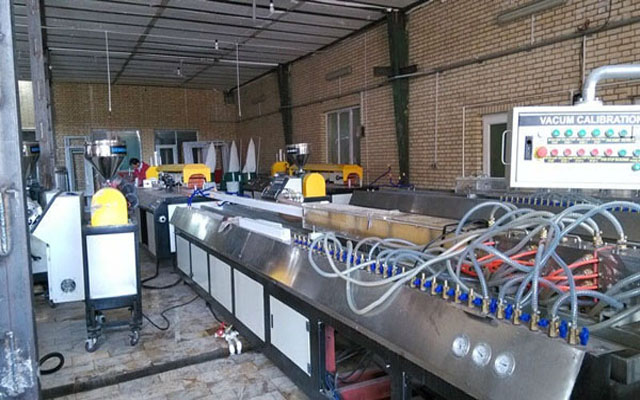

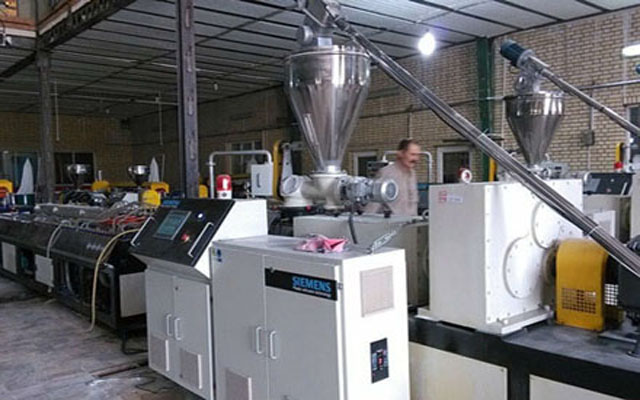

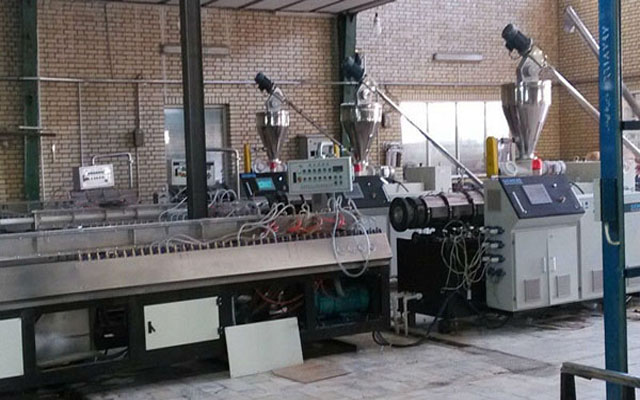

Process flow of the UPVC window machine PVC doors and windows machine :
Raw material +additives → mixing → granulating → conical twin-screw extruder →
profile extrusion mould →cool molding die → vacuum calibration support → belt haul-off → cutter →
stacker → finished product inspecting & packing

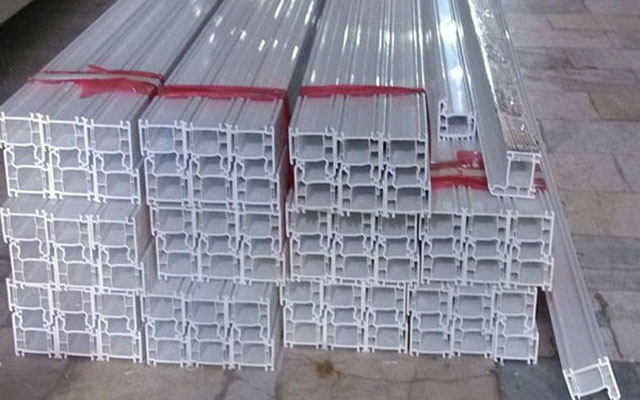

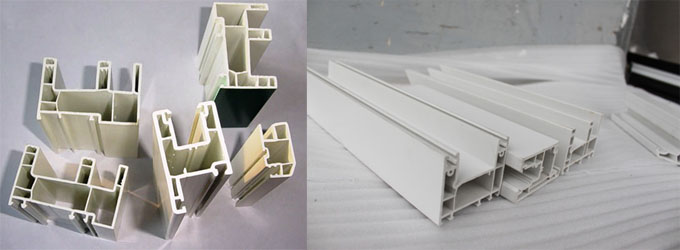

Products
Application

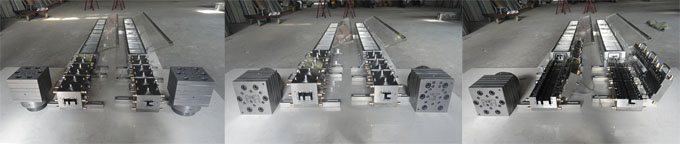

Die

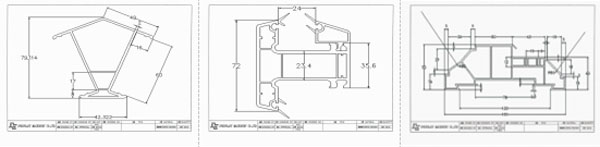

Drawing
